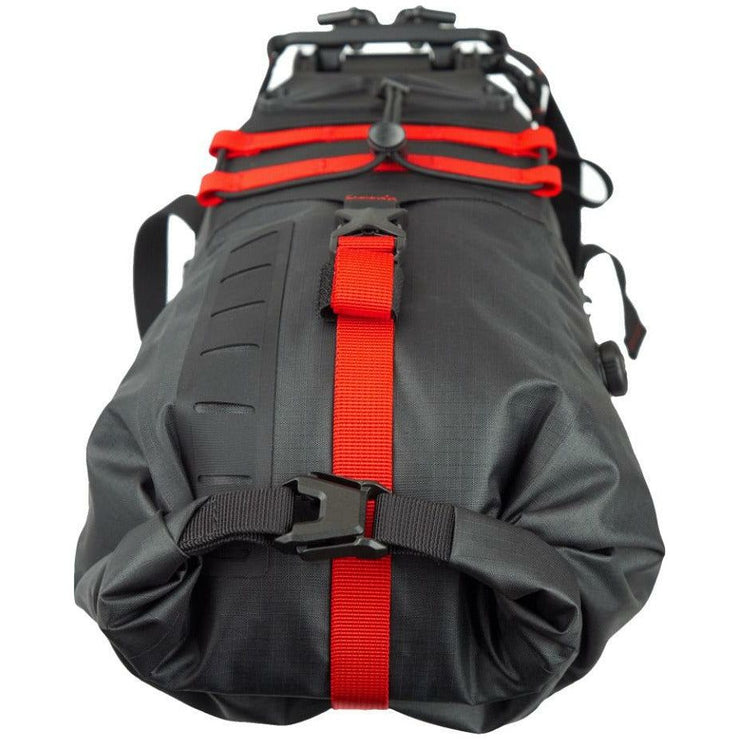

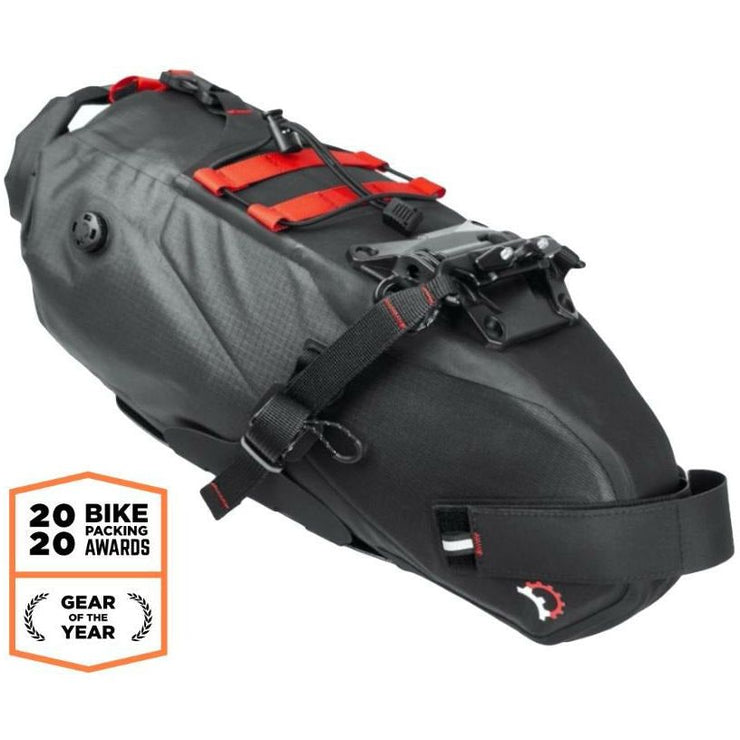

Revelate Spinelock 10L Seat Bag, Black. Full view.
Revelate Spinelock 10L Seat Bag, Black. Front view.
Revelate Spinelock 10L Seat Bag, Black. Protective external plastic bottom frame sheet view.

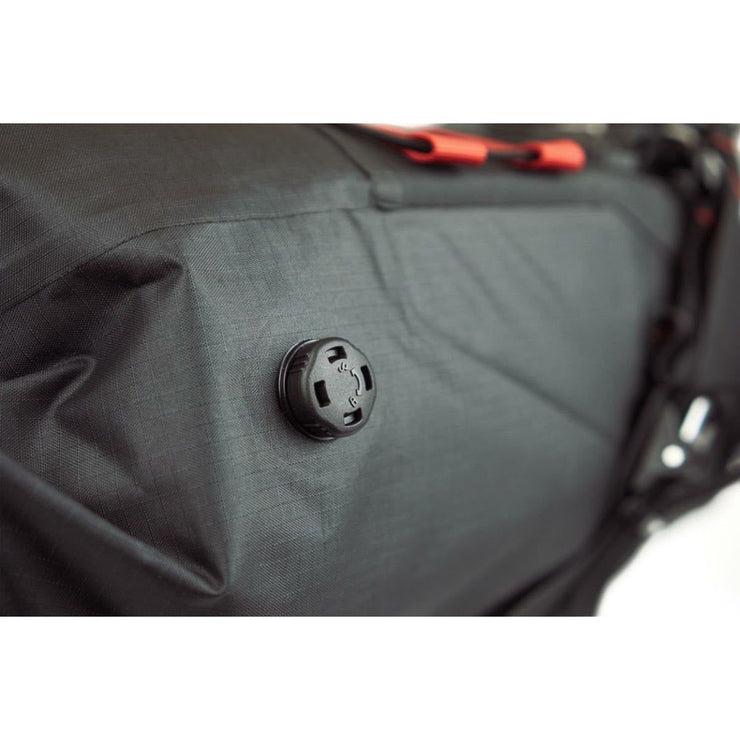

Revelate Spinelock 10L Seat Bag, Black. Purge valve view.
Revelate Spinelock 10L Seat Bag, Black. Innovative Spinelock stability system view.

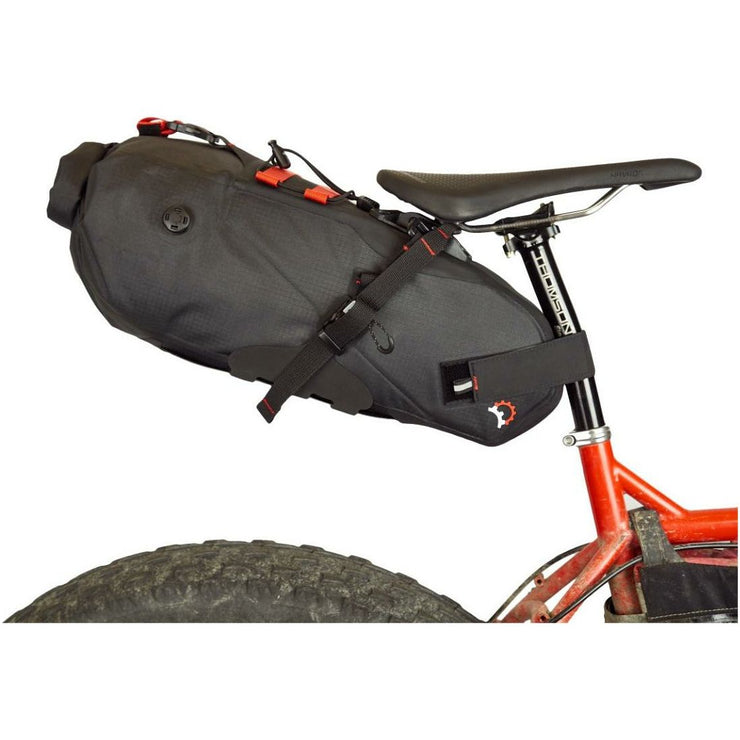

Revelate Spinelock 10L Seat Bag, Black. Side view.
Revelate Spinelock 10L Seat Bag, Black. Mounting side view.
Revelate Spinelock 10L Seat Bag, Black. Mounting front view.
Revelate Spinelock 10L Seat Bag, Black. Important information on use and fit reference view.
Revelate Spinelock 10L Seat Bag, Black. Full view.
Revelate Spinelock 10L Seat Bag, Black. Front view.
Revelate Spinelock 10L Seat Bag, Black. Protective external plastic bottom frame sheet view.
Revelate Spinelock 10L Seat Bag, Black. Purge valve view.
Revelate Spinelock 10L Seat Bag, Black. Innovative Spinelock stability system view.
Revelate Spinelock 10L Seat Bag, Black. Side view.
Revelate Spinelock 10L Seat Bag, Black. Mounting side view.
Revelate Spinelock 10L Seat Bag, Black. Mounting front view.
Revelate Spinelock 10L Seat Bag, Black. Important information on use and fit reference view.


FEATURES:

  • The innovative Spinelock stability system completely eliminates side-to-side sway
  • Waterproof construction
  • Two mounting positions to accommodate seatpost setback and saddle adjustments
  • A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form a quick-release pin interface making bag removal a cinch.
  • Quick release bag from bike
  • Internal HDPE plastic structure
  • One way, low profile, air purge valve
  • Carbon seatpost friendly
  • Hypalon slots for a rear light
  • Top mounted external webbing and bungee for additional storage
  • Protective external plastic bottom frame sheet
  • Active cam buckles prevent side straps from slipping on rough terrain

Important information on use and fit:

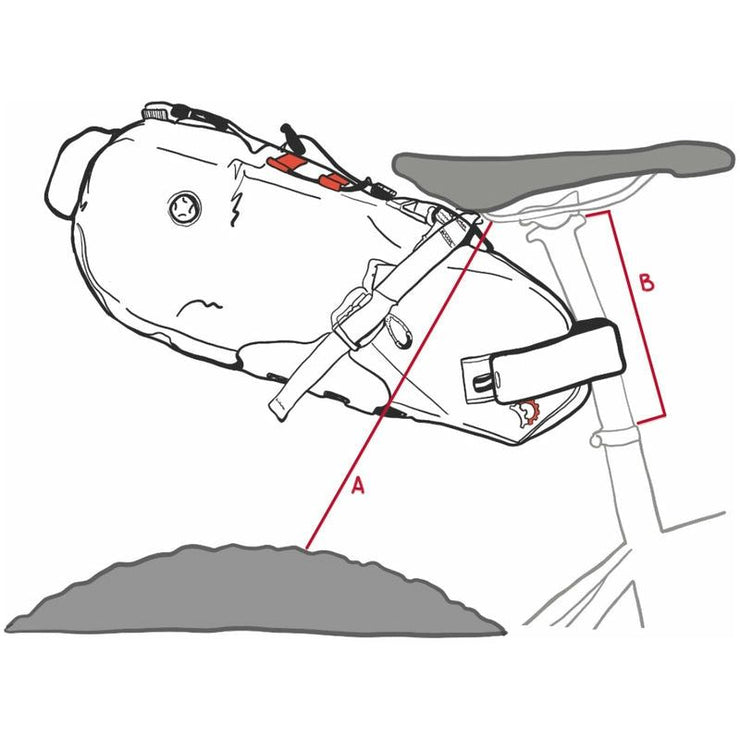

  • Minimum 8 in / 20 cm tire clearance (Shown as A)
  • Minimum exposed seat post 6.5 in / 16.4 cm (Shown as B)
  • Traditional saddle-style rails are required.
  • Does not work with most Brooks saddles.
  • Not compatible with carbon fiber saddle rails
  • Only compatible with traditional style saddle rails and is not compatible with most models of Brooks saddles including (B17, B66, B67, Flyer, and similar).
  • This product is not designed for use with dropper seatposts.
  • This bag is for carrying soft, pliable objects. Sufficiently pad any hard edge objects like cookware to prevent premature wear.
  • It is mandatory to check tire clearance prior to use, especially with full suspension bikes. Bag contact with a tire can cause a bad wreck and ruin your day. Tire damage to the bag is not covered by warranty.
  • A Torx-25 wrench is needed for installation. You likely already have one on your multi-tool!

SPECS:

  • Weight: 22.5 oz / 638 g
  • Volume: 610 in³ / 10 L
  • Materials: 210 Denier Ripstop Nylon with dual coated TPU, urethane-based Hypalon reinforcement fabric, UV-stabilized, impact-resistant nylon resin, forged aluminum. Imported.
Order Processing Time: We aim to ship orders on the day the order is placed as mail service allows. Most orders will ship within one to three business days unless it is a pre-order for an item that is not yet available. For those orders, we will notify you when we receive the product and it is ready to ship.

Bike Shipping Policy: Many of the bikes sold on our website cannot be shipped and must be picked up in-store. Bikes that cannot be shipped are marked as such in the product description. Bikes that can be shipped include: Used and demo bikes, current and older model-year Orbea, Kona, Salsa, some Intense models, Rocky Mountain analog bikes and all Norco bikes. Bikes and frames under $3,000 will incur a $150 shipping fee within the continental U.S. We also charge $40 to ship rims and wheelsets within the continental U.S.

Local Pickup: Most orders will be ready for local pickup the day the order is placed, or by the date and time you request at the time you place your order. We will notify you if there is a delay. Please select In-store Pickup in cart and enter the information in the fields provided.

International Shipping: We do not ship outside of the U.S. at this time.

Free Shipping: We provide free standard shipping on orders over $100 within the continental U.S. Bikes and frames under $3,000 will incur a $150 shipping fee. We can ship bikes and frames and larger items like wheelsets to Hawaii and Alaska, but there will be an additional charge to cover air freight shipping.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging.

To start a return, you can contact us at support@thepathbikeshop.com. If your return is accepted, we’ll send you a return shipping label, and instructions on how and where to send your package.

Damages and issues : Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item so that we can evaluate the issue and make it right.

Exceptions / non-returnable items: Unfortunately, we cannot accept returns on gift cards. We do offer returns on sale items, but the customer will be responsible for return shipping. We also do not offer free returns on bicycles, complete wheels or rims, or on forks. The customer will be responsible for the return shipping on these items.

Exchanges: The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.

Refunds: We will notify you once we’ve received and inspected your return. If approved, a refund will be sent to your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.If you paid with a debit card via PayPal, please note that it can take up to 7 days for those funds to be returned to your card, per PayPal's policy.

Revelate Spinelock Seat Bag

85523

Regular price $179.00 Save $0.00
/

Shipping calculated at checkout.

Only 1 items in stock!

The Revelate Spinelock™ seat bag is the most stable, low-profile mounted, feature-loaded, waterproof seat bag available.

It integrates user tested and approved features like a one-way air purge valve, rear light slots, loop and bungee deck, and an external plastic bottom with a new patented attachment system. Stability was the driving element in the design process. If you want something you can pack and forget, the Spinelock is your seat bag.

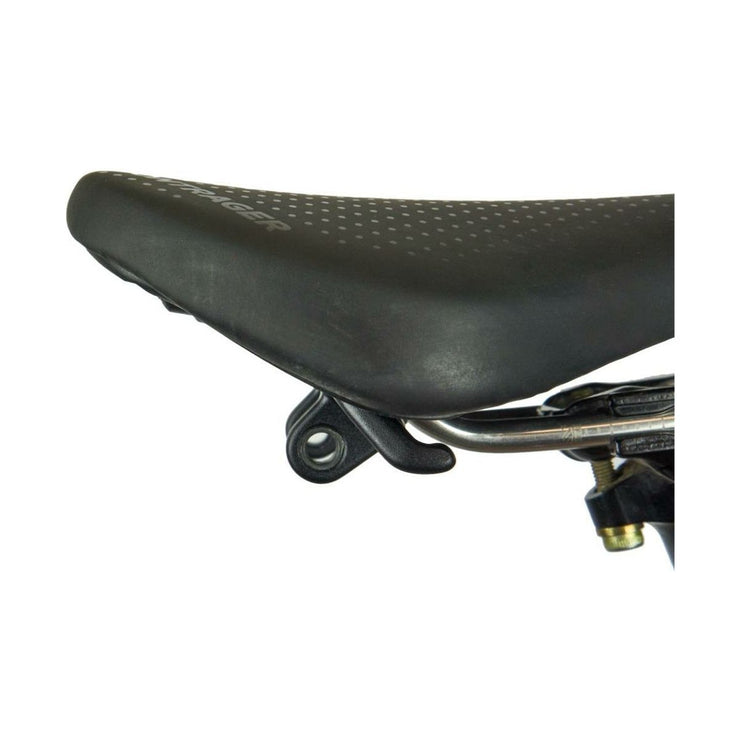

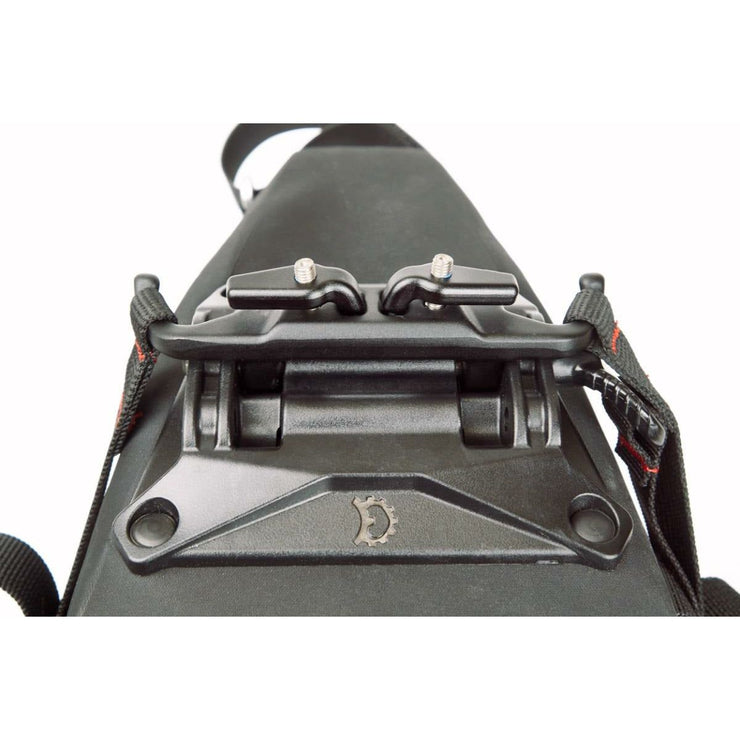

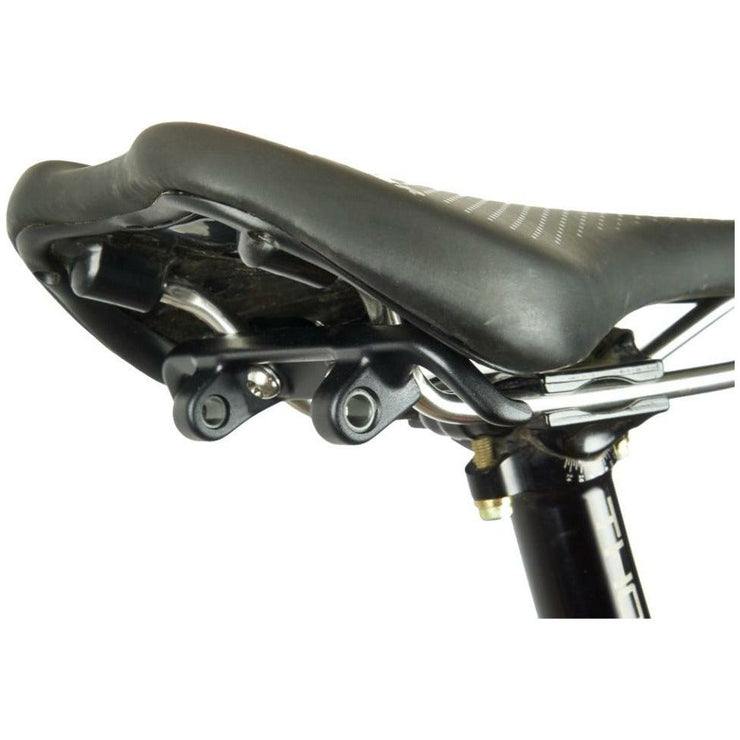

Its stability system consists of three components: the saddle clamp, seat bag mounted "Spine" baseplate, and pin. A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form the pin interface. Twin forged upper arms, fastened by Torx-25 bolts, rotate into position above the saddle rails for easy mounting.

FEATURES
SPECS
