Pedals

The Wah Wah II composite pedal is now lighter (360 grams a pair), brighter, and better for your wallet. Built from a super durable plastic composite, the Wah Wah II comes in six colors

Available in two sizes and six colors.

FEATURES

• Stamp Small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
• Stamp Large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
• Composite body
• Optimal surface area
• Minimal profile 13mm thin
• 9 hex traction pins per side
• Premium bearings & seal system

FEATURES:

• Super slim 12mm for maximized pedal clearance
• CNC weight optimized trail pedal at 360g per set
• Forged alloy body is shot peened and anodized for increased durability
• Equipped with hollow taper chromoly steel axles for unmatched strength
• Sealed bearings and IGUS bushings
• 18 preassembled pins in virtual concavity for ultimate grip
• Recommended for: ASTM 5, All mountain, enduro, trail, E-Bike

SPECS:

• PLATFORM SIZE (mm): 100x100
• PLATFORM PROFILE (mm): 12
• WEIGHT +/- (g): 360 /set
• AXLE: cold forged chromoly steel
• BEARING/BUSHING: industrial sealed bearing, IGUS bushing
• PINS: 18 steel pins (per pedal)
• TECHNOLOGIES: Chamfered leading edges
• MATERIAL: MGR extruded alloy body, CNC optimized

Size specific magnesium platform pedal provides optimal shoe/pedal interface.

Details:

• Magnesium pedal body for weight reduction
• Optimal surface area
• Minimal body profile - 16mm thin
• Concave pin profile & 10 adjustable pins per side for grip
• Premium bearings & seal system
• Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
• Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)

Specs:

• Adjustable pins: 10 per side
• Body material: AM60B Magnesium Alloy
• Endcap: T15
• Footprint: 114mm x 111mm
• Inner Bearing Type: Igus Bearing
• Max Rider Weight: No restriction
• Outer Bearing Type: Double Cartridge Bearing
• Shoe Size: US 10-15 // EU 43-49
• Spindle Material: Forged SCM 415 Chromoly Steel
• Warranty: 5 years
• Weight: 386g per pair

OneUp Composite Pedals feature a huge (115x105mm) super grippy platform with 10 rear-loading steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 355g, they won't slow you down on the climbs. Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedal sitting in the natural arch of your foot. The thin leading edge chamfered design gives you maximum clearance to reduce pedal strikes and deflect trail obstacles.

FEATURES

• 10 rear-loading Steel pins/side, with Nyloc nuts
• DU plus cartridge bearing axle system
• Thin leading edge chamfered design to deflect off obstacles
• Wide platform design for increased stability
• Contoured shape provides an ultimate connected feel

SPECS:

The Wah Wah 2 Small Composites are the latest addition to Kona's legendary Wah Wah line of pedals. The Wah Wah 2 Small is a composite pedal made for people with smaller feet or kids with regular feet or anyone who just wants a smaller platform. They’ve undergone rigorous testing and have passed with flying colors!

The Wah Wah 2 Small pedals are 13mm thick and feature a small 110mm by 108mm platform size, 7 pins per side and a set weigh in at 339 grams.

Wah Wah 2 Small pedals feature a 100% serviceable bearing system

• Optimal surface area
• Minimal profile 11mm-13mm thin
• Concave platform for secure foothold
• 10 adjustable pins per side for grip
• Premium bearings & seal system
• Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
• Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)

The Kona Wah Wah II aluminum pedal comes in five colors and are made from forged CNC alloy and feature sealed bearings and DU bushings. With 16 replaceable pins, your feet will stay planted and secure. 100% serviceable bearings mean these durable, lightweight pedals will endure miles of abuse.

Platform Measurements (mm): 120 long x 118 wide x 13 thick

FEATURES:

• Optimal surface area
• Minimal profile 16mm thin
• 10 adjustable 8mm pins per side for grip
• Premium bearings & seal system
• Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)

SPECS:

• Adjustable Pins: 10 per side
• Body Material: A380 Aluminum
• Endcap: T15
• Footprint: 114mm x 111mm
• Inner Bearing Type: Igus Bearing
• Max Rider Weight: No restriction
• Outer Bearing Type: Double Cartridge Bearing
• Spindle Material: Forged SCM 415 Chromoly Steel
• Weight: 494g per pair

FEATURES

• Extruded and Machined from Deity molds and 6061 T6 aluminum
• Thin 11mm profile at the exterior edges
• 103mm x 100mm footprint
• Concave pin profile
• Load distribution system to prevent bearing blowout
• Multi micro sealed bearings and Deity DU Bushing internals
• 10 allen bolt pins per side keep your feet glued
• Machined traction grooves
• Minimal material in key areas to shed weight and mud build up
• Stepped Black polished Cr-Mo axle is compatible with 8mm allen keys or also a standard 15mm pedal wrench
• Fully serviceable without requiring removal from the bike
• Pedals come with an extra set of pins for back ups
• Weight: 370 grams (pair)

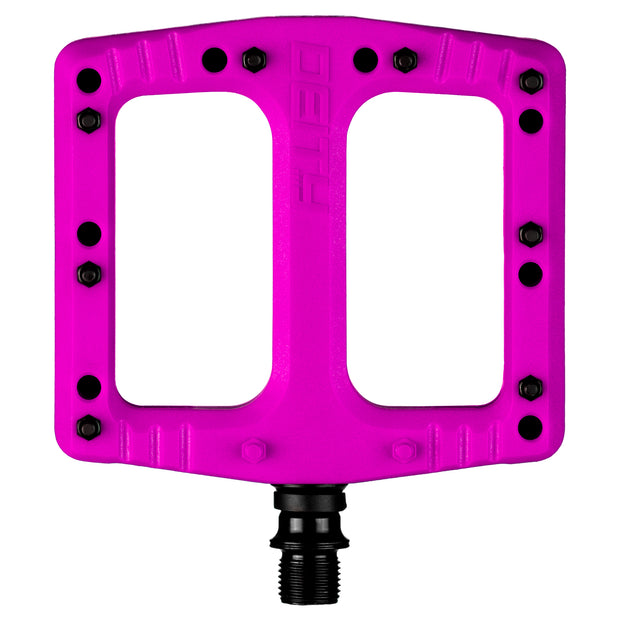

The DEFTRAP pedal is built around a true concave profile that your feet sink into with Deity's signature non-offset symmetrical platform for increased stability behind the spindle, 10 total pins (8 replaceable cr-mo pins and 2 molded pins per side), the brand's tried and true sealed bearings and DU bushing system and top tier nylon and glass fiber composite material creates a pedal that feels unlike anything on the market.

SPECS:

• All-new pedal design inspired by the world-renowned TMAC pedal
• Injection Molded Nylon Fiber Composite Body
• Premium Nylon Glass Fiber Composite material is 28% stronger than Nylon Composite used by most leading brands
• Nylon GlassFiber blend does not get hung up on rocks
• Non-offset symmetrical design gives the rider perfect weight distribution across the pedal, creating a very stable platform through rough terrain.
• Large 113mm L x 103mm W footprint
• Featuring a true concave pedal body profile
• 1.5mm of concave shape in the pedal body (per side)
• 18mm at the center
• Best-in-class 10 pins per side (8 replaceable steel pins, and 2 fixed nylon pins)
• 2 sealed bearings with oversized DU bushing design is robust and reliable
• Open channeling for optimized mud and snow shedding capabilities
• Not the average plastic disposable pedal...the DEFTRAP Pedals are fully sealed, rebuildable, thin, and offer the same or better grip in comparison to a traditional aluminum pedal
• Brilliant design for all genres of riding...from Trail, Enduro, Downhill, Dirt Jumping, to commuters
• Full color range available in Black, Red, Orange, Green, Blue, Turquoise, Yellow, Mint, Purple, and Pink options
• 391 grams per pair

*** Pro Installation Tip: DEITY recommendS checking that all of your pins are snug prior to installing any pair of pedals.

The OneUp Aluminum Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading hexagonal steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 365g, the OneUp Aluminum Pedals won't slow you down on the climbs.

FEATURES:

• 10 rear-loading custom hexagonal removable pins per side for maximum grip
• Ultra-thin leading edge chamfered design to deflect off any obstacle
• Fully sealed and serviceable design with built-in bearing extractor
• Wide platform design for increased stability
• Contoured shape provides the ultimate connected feel

SPECS:

Everything you need to fully rebuild your OneUp Composite Pedals.

Kit Contains:

2 Cartridge Outer Bearings
2 Inner Du Bearings
2 Outer Seals
2 Axle Nuts

For those that favor the durability, compliance and affordability of composite pedals, the new benchmark choice from DMR has arrived!

The V11 pedal provides a huge platform with DMR's unique concave shape that allows your foot to sit deep into the center for supreme grip. Its durable glass reinforced nylon body features eleven replaceable steel pins each side for rock solid grip. All pins are secured with captive locknuts for ultimate durability. Outer pins are Vault Moto pins that sink deep into your shoe, keeping your foot well and truly planted.

FEATURES:

• Durable glass reinforced nylon body
• Large platform area 105mm x 105mm
• Low profile body with concave foot bed
• Tuneable pins with outer Moto Pins for serious grip
• Strong 4140 Cro-mo black steel axles (9/16") with 6mm hex key fitting
• Fully serviceable for long life
• Weight 450g/pair

FEATURES:

• Strong and lightweight one-piece alloy body
• Forged chromoly axle delivers strength and durability
• Each pedal set finish unique in its mottled or grunge anodize finish
• Large platform size with concave profile combines support with ultimate grip
• Shot-peen surface increases fatigue life and impact resistance
• Recommended for: ASTM 5, All mountain, Free Ride, DJ, Pumptrack, KIDS

SPECS:

• PLATFORM SIZE (mm): 100x105
• PLATFORM PROFILE (mm): 16 - 12 concave profile
• WEIGHT +/- (g): 395 per set
• AXLE: cold forged chromoly steel
• BEARING/BUSHING: industrial bearing, IGUS bushing
• PINS: 12 steel & 8 alloy pins (per pedal)
• TECHNOLOGIES: Chamfered leading edges
• MATERIAL: Die cast alloy
